Cut Your Old Newel Post Squarely

TrueNewel 90 is a saw guide for 90mm square stair newel posts, with acrylic guide faces beside the blade path — made for the staircase-refurbishment cut you only want to make once.

  • Designed for 90mm square newel posts
  • Screws to the existing post for a square saw guide
  • Acrylic guide faces where the saw runs
  • Disposable one-project guide
  • Available flat-packed, ready-assembled or with a recommended saw
Buy TrueNewel 90 Check If It Fits Your Post Watch how it works

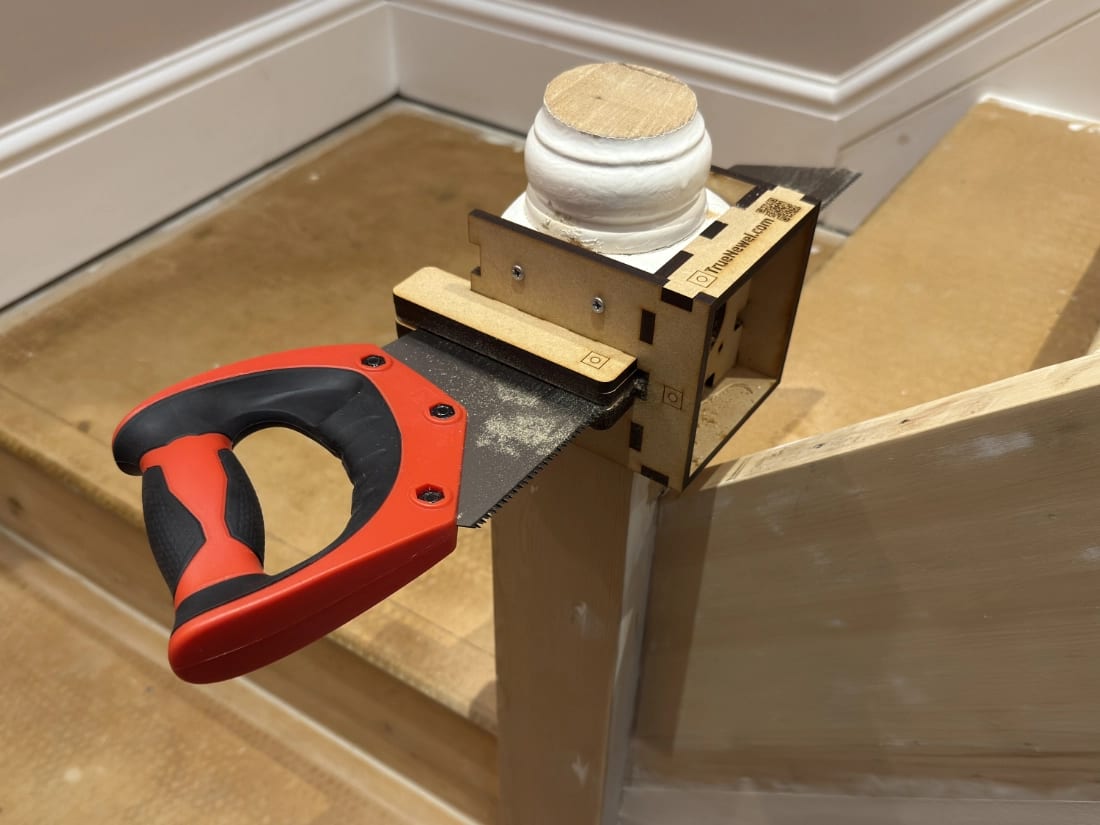

TrueNewel 90 screwed to a 90mm stair newel post with a hand saw in the guide
The problem

The Cut That Makes DIY Stair Refurbishers Nervous

Most stair refurbishment kits make the new parts look simple to fit. But before the new post can go on, the old newel often has to be cut down to form a clean, level stump.

Marking a square line around the post is only the first part. The real challenge is keeping a hand saw square in two directions at once as you cut through the vertical newel post — something that is extremely difficult to do accurately without a guide.

TrueNewel was created for that exact moment.

See How It Works

How do I cut a newel post square?

To cut an old newel post squarely, first follow your stair refurbishment kit instructions to mark the correct cut height. Then mark a second square line exactly 50mm below the cut line to position the bottom edge of the TrueNewel 90 jig. Once screwed to the 90mm square post, the jig helps guide the hand saw through the cut.

Old stair newel post before being cut down during refurbishment

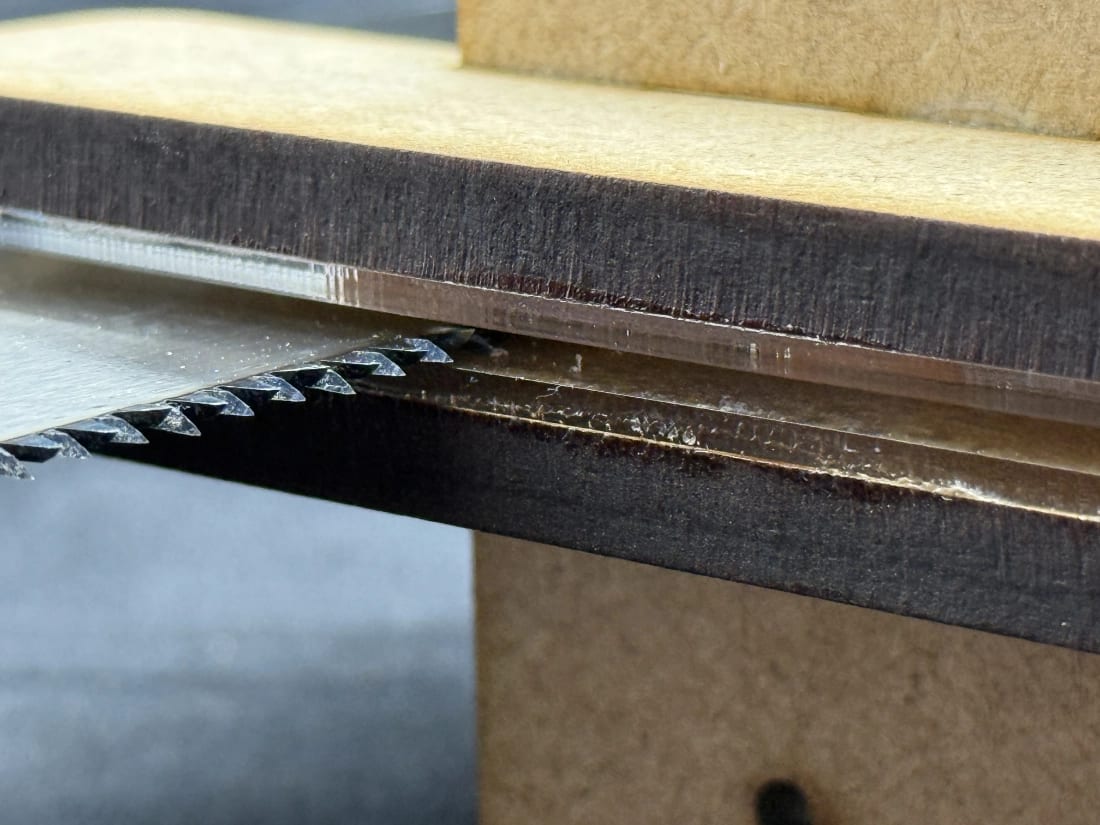

Acrylic guide faces on TrueNewel saw guide beside a hand saw blade
The solution

A Square Saw Guide for the Cut That Matters

TrueNewel 90 screws directly to your existing 90mm newel post. Once fixed in place, the acrylic guide faces help keep your saw running square as you cut through the post.

It does not decide where you cut. Your stair refurbishment instructions do that. TrueNewel simply helps guide the saw once you have measured and positioned it correctly.

A cut-only guide. It does not drill the dowel or spigot hole.

How it works

Mark. Screw. Saw. Cut Square.

1

Mark your cut height

Follow the instructions supplied with your stair refurbishment kit and carefully mark the correct cut line around the post. Then mark a second square line exactly 50mm below the cut line — this lower line shows where the bottom edge of the TrueNewel 90 jig should sit.

2

Fit the guide

Position TrueNewel 90 around the post, lining up the bottom edge of the jig with the lower 50mm guide line. Screw it securely in place using the side fixing holes.

3

Cut carefully

Run a suitable hand saw through the acrylic guide faces beside the blade path, keeping steady pressure and letting the guide help control the cut.

4

Remove and continue your refurb

Remove the jig and continue fitting your replacement newel post according to your stair kit instructions.

Watch how it works

Important note: Measure twice, cut once. Check both your cut line and the 50mm lower guide line carefully before fitting the jig and cutting. Once the post is cut, it cannot be restored.

Choose your kit

Choose Your TrueNewel 90 Kit

Three kits, one job done squarely. Pick the option that suits your project and add it straight to your secure basket.

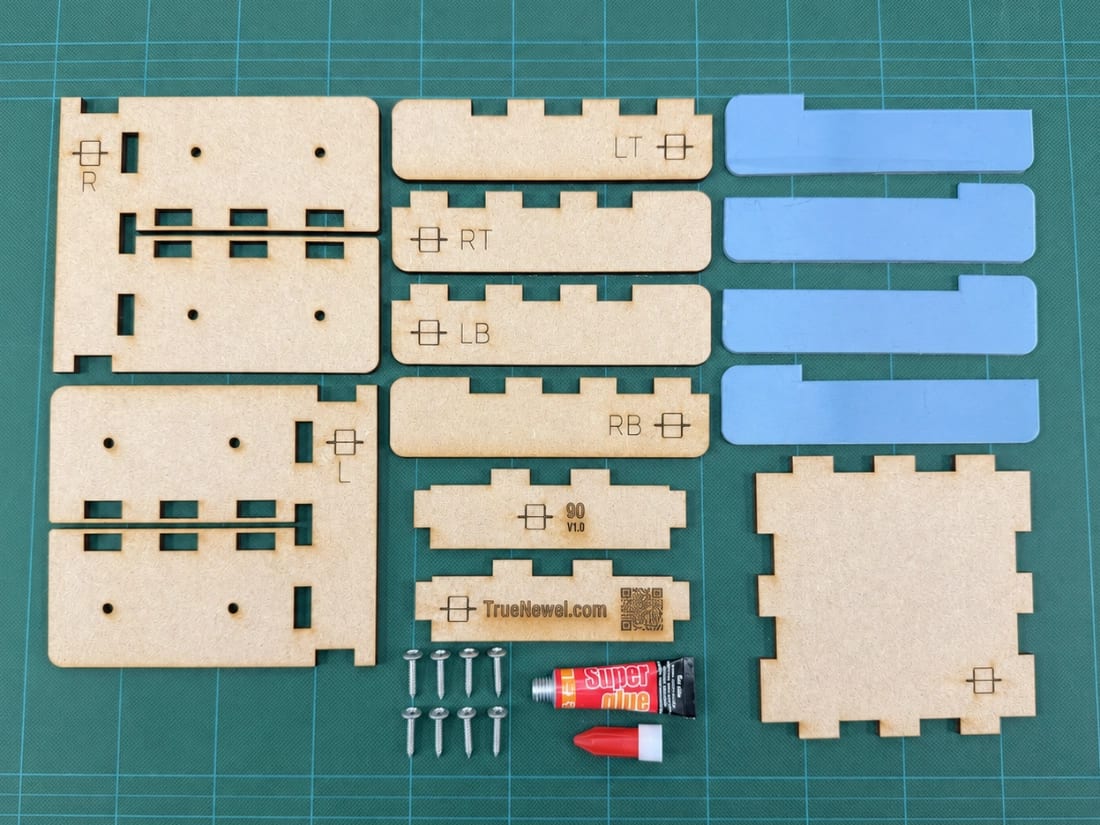

Flat-pack TrueNewel 90 newel post cutting jig parts laid out

Flat-Pack Kit

£24.95 Free UK delivery included

Best for: lowest-cost option

  • Laser-cut jig parts
  • Super glue
  • Screws
  • Instructions

Assembly: approximately 20 minutes + glue drying + overnight

Buy Flat-Pack Kit
Most popular

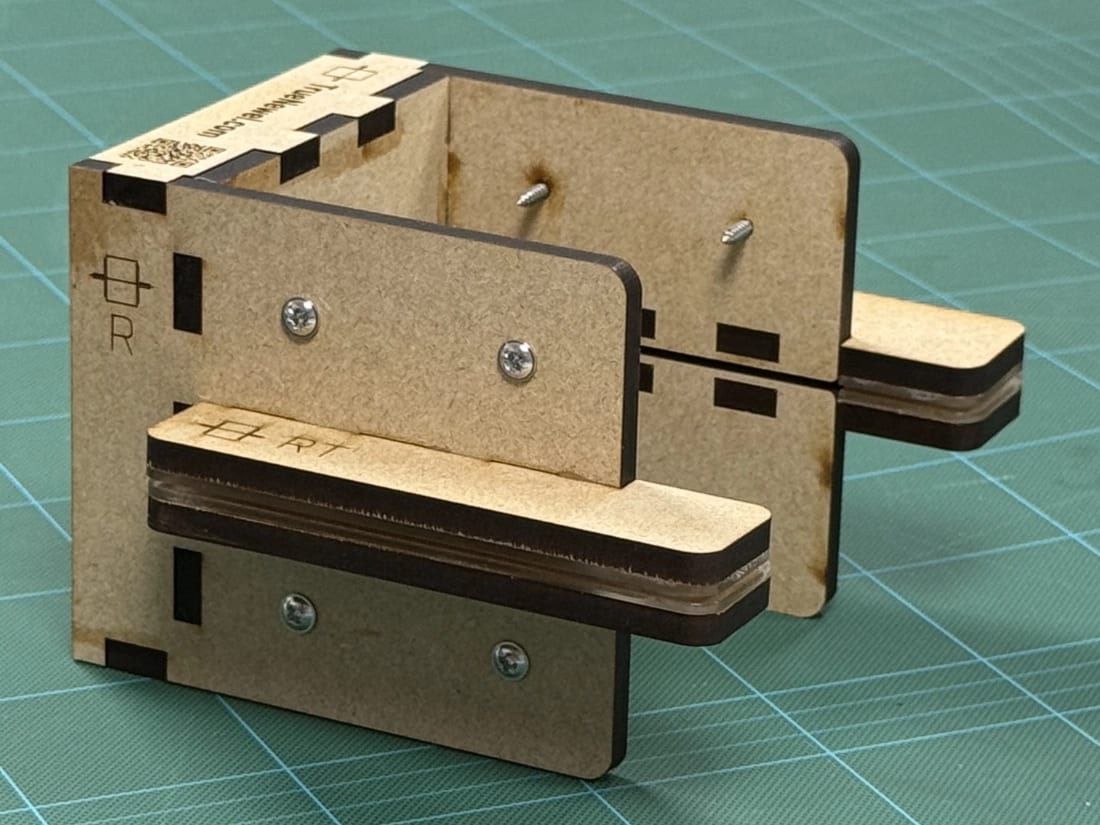

Ready-assembled TrueNewel 90 newel post cutting jig

Ready-Assembled Kit

£34.95 Free UK delivery included

Best for: quickest setup

  • Assembled jig
  • Screws
  • Instructions
Buy Ready-Assembled Kit

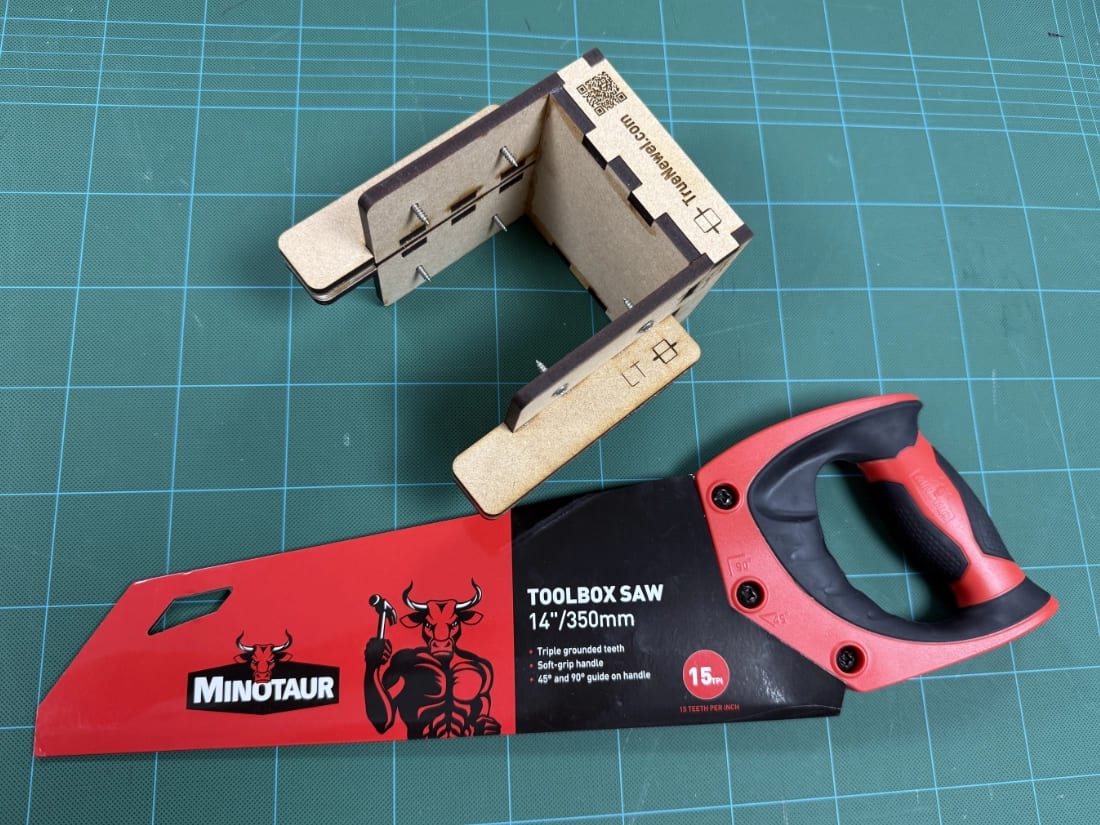

TrueNewel 90 saw kit contents including recommended hand saw

Saw Kit

£44.95 Free UK delivery included

Best for: customers who want the recommended saw included

  • Ready-assembled jig
  • Recommended hand saw
  • Screws
  • Instructions
Buy Saw Kit
Built to wear

Acrylic Where the Saw Runs

TrueNewel 90 uses a laser-cut MDF body with harder-wearing 2mm acrylic guide faces positioned where the saw blade runs. The acrylic faces are designed to help the guide last through the main cuts on a typical staircase refurbishment, while still keeping it affordable as a disposable one-project tool.

TrueNewel 90 is a sacrificial, disposable guide. It is designed for a single staircase refurbishment project. The saw runs through it, and consequently, it will wear in use.

  • Laser-cut 6mm MDF main body
  • 2mm acrylic guide faces where the blade runs
  • Screw holes in the side panels fix it to the post
  • Saw guide slot approximately 2mm high
Acrylic guide faces on TrueNewel saw guide where the blade runs
Compatibility

Will It Fit My Newel Post?

TrueNewel 90 is designed specifically for 90mm square posts. Check the lists below before you buy.

Suitable for
  • 90mm square newel posts
  • Painted posts with slight tolerance
  • Lightly rounded or chamfered corners
  • Suitable hand saws will have a wide blade around 1mm thick and produces a kerf of around 1.5mm
  • Cutting an existing post to form a square stump
  • Trimming a post to height where access allows
Not suitable for
  • Half-newel posts fixed against a wall
  • Badly twisted or heavily out-of-square posts
  • Posts where there is not enough space to use a saw
  • Drilling dowel or spigot holes
  • Deciding where your stair kit requires the cut

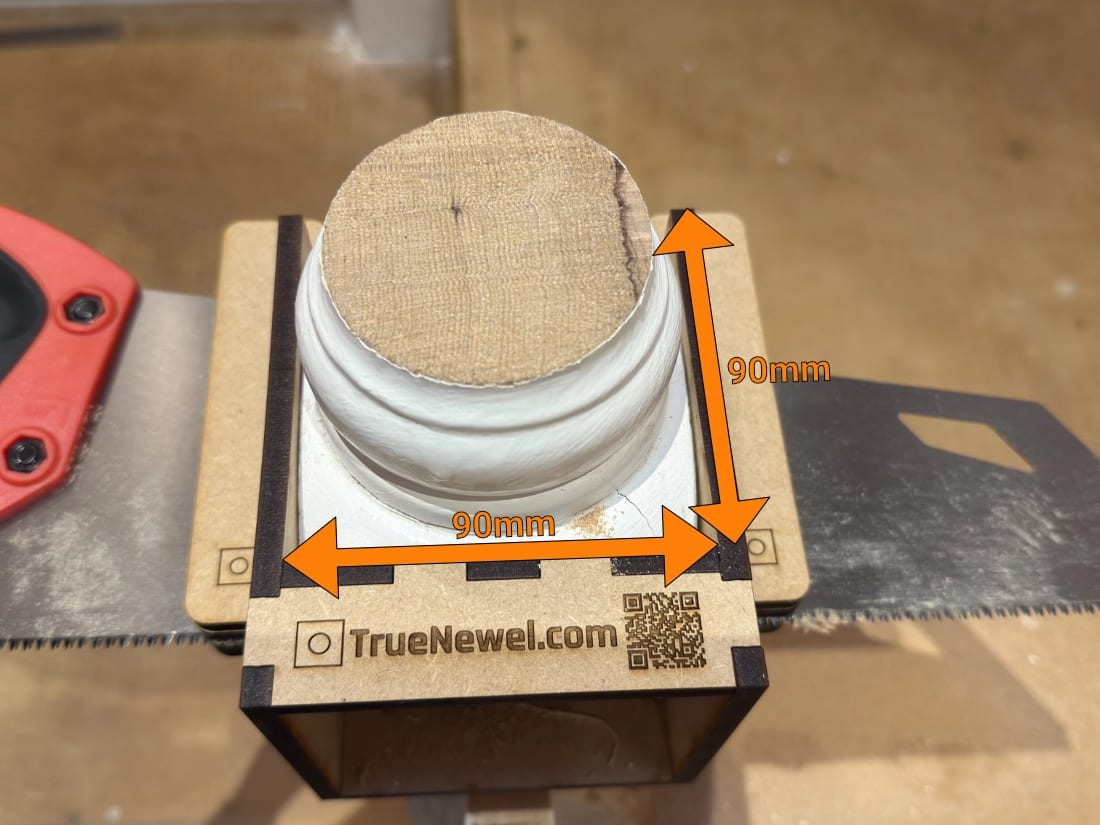

Compatibility diagram showing a suitable 90mm square newel post
Diagram showing a half-newel post against a wall is not suitable

Need another size?

Tell us your newel post size and we may add more versions based on demand. TrueNewel 90 is the first version — your request helps decide what comes next.

Need Another Size Form

See it in action

A Quick Look at TrueNewel 90

A short demonstration from marked post to square stump.

Before you cut

Important Before You Cut

TrueNewel is a cutting guide only. It does not tell you where your newel post should be cut. Always follow the instructions supplied with your staircase refurbishment kit, and seek advice from a qualified joiner if you are unsure.

Do not cut structural stair parts unless you are confident the cut is suitable and safe. Measure carefully before cutting. Once cut, the post cannot be restored.

TrueNewel helps guide the saw, but the final result still depends on correct positioning, secure fixing, saw choice and careful use.

Our story

Created After a Real Stair Refurbishment Problem

TrueNewel was created after refurbishing a real staircase and finding that cutting the old newel post squarely was one of the most awkward and nerve-racking parts of the job.

The first version is deliberately simple: a practical 90mm cut-only guide for DIY stair refurbishers who want more confidence before making that irreversible cut.

Trade & wholesale

For Stair Kit Suppliers, Fitters and Trade Buyers

Do your customers struggle with cutting old newel posts squarely during staircase refurbishment?

TrueNewel 90 is available for trade discussions, sample requests, wholesale supply, bundle inclusion with stair refurbishment kits, custom sizes and future professional-version interest.

  • Sample requests
  • Wholesale & bundled supply
  • Custom sizes on request
  • Future professional-version interest
Trade Enquiry Form

Questions

Frequently Asked Questions

TrueNewel 90 is a saw guide designed to help you cut an existing 90mm square stair newel post more squarely during stair refurbishment.
Yes. Watch our short demonstration video to see TrueNewel 90 fitted to a newel post and used to guide a square cut from start to finish.

Watch how it works

No. This launch version is cut-only. It does not drill the dowel or spigot hole.
This version is designed for 90mm square newel posts. It should usually work with painted posts and lightly rounded corners, but it may not suit badly twisted or heavily out-of-square posts.
No. This version is not intended for half-newel posts fixed against a wall.
Not necessarily. You can use your own suitable hand saw if it has a blade around 1mm thick and produces a kerf of around 1.5mm. The saw kit is simply for customers who want the recommended saw included.
TrueNewel 90 is designed as a disposable one-project guide. The acrylic guide faces help improve wear resistance for the main cuts in a typical staircase refurbishment, but the guide is still sacrificial because the saw blade runs through it during use.
No. It helps guide the saw, but the result depends on correct positioning, secure fixing, saw choice and careful use.
No. Your stair refurbishment kit instructions should tell you where the post needs to be cut. TrueNewel helps guide the saw after you have measured and positioned it correctly.
TrueNewel 90 is the first version. Other sizes may follow if customers request them.
Get in touch

Contact TrueNewel

Have a question before you buy, or need help during your stair refurbishment? Send us a message and we’ll get back to you.

TrueNewel is a trading name of Syxth Limited.

Contact Form

Ready to Make the Cut With More Confidence?

Choose your TrueNewel 90 kit and get a square-cut guide for your stair refurbishment project.

Buy TrueNewel 90
Secure checkoutAll major cards accepted
Free UK deliveryIncluded in the price
Honest & clearA cut-only guide, no false promises
Made from real DIY experienceBuilt to solve a real problem
